100GBASE QSFP28 Transceiver 1310nm 2km MTP/MPO over SMF

Certification : CE, FCC, ROHS, ISO9001, ISO14000, MSDS, REACH, CP65, TUV, UL

Place of Origin : China

MOQ : 1 pcs

Price : negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 50,000pcs/month

Delivery Time : 1-5 work days

Packaging Details : Single Package,10pcs per Tray,100-500pcs per Carton

Form Factor : QSFP28

Max Data Rate : 103.125Gbps

Wavelength : 1310nm

Distance : 2km

Connector : MTP/MPO-12

Media : SMF

Transmitter Type : DFB

Receiver Type : PIN

TX Power : -9.4~2dBm

Receiver Sensitivity : ＜-10.3dBm

Receiver Overload : 2dBm

Power Consumption : ≤3.5W

Extinction Ratio : >3.5dB

Temperature : C-Temp & I-Temp

Protocols : QSFP28 MSA，SFF-8636

Warranty : 3 Years

Compatible Brand : Cisco,Arista,Juniper,Brocade,H3C,Dell,Extreme,HW,Intel,Netgear,IBM Mellanox,Mellanox,Avaya,Alcatel-Lucent,D-Link,Ubiquiti&Generic

Contact Now

Features

QSFP28 MSA compliant
Supports 53.125Gbaud
100G Lambda MSA 100G-FR Specification compliant
Up to 2km transmission on single mode fiber (SMF) with FEC
Operating case temperature: 0 to 70℃
4x25G electrical interface (OIF CEI-28G- VSR)
Maximum power consumption 3.5W
Single MPO12 connector
RoHS compliant

Applications

Data Center Interconnect
100G Ethernet
Enterprise networking

Description

This product is a transceiver module designed for 2km optical communication applications. The module incorporates one channel optical signal, on 1310nm center wavelength, operating at 50Gbaud data rate. The transmitter path incorporates an EML Driver and a cooled EML together. On the receiver path, the input optical signal is coupled to a Pin photodiode detector. A DSP based gearbox is used to convert 4x25Gbps NRZ signals to 1x50Gbaud PAM4 signal. Also a 4-channel retimer and FEC block are integrated in this DSP. The electrical interface is compliant with IEEE 802.3cd and QSFP28 MSA in the transmitting and receiving directions, and optical interface is compliant to IEEE 802.3cd and 100G Lambda MSA with Duplex LC connector. The module has a maximum power consumption of 3.5W.

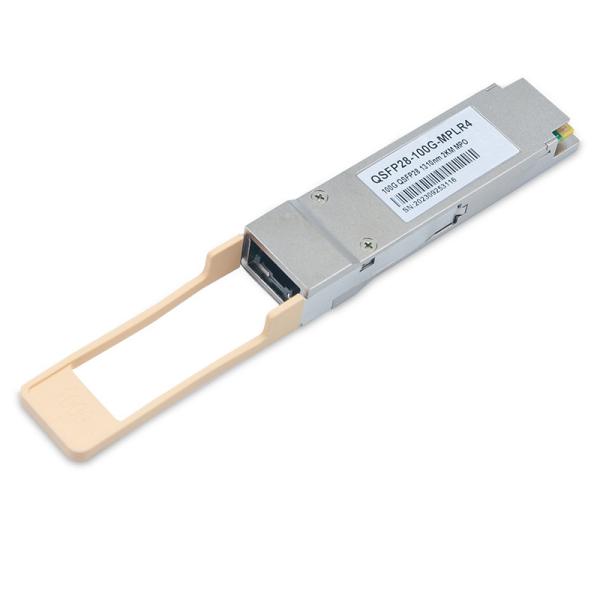

100GBASE QSFP28 Transceiver 1310nm 2km MTP/MPO over SMF Images
