200GBASE MTP/MPO 100m SR4 QSFP56 over OM4 Transceiver MMF

Certification : CE, FCC, ROHS, ISO9001, ISO14000, MSDS, REACH, CP65, TUV, UL

Place of Origin : China

MOQ : 1 pcs

Price : negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 50,000pcs/month

Delivery Time : 1-5 work days

Packaging Details : Single Package,10pcs per Tray,100-500pcs per Carton

Form Factor : QSFP56

Max Data Rate : 200Gbps

Wavelength : 850nm

Distance : 100m

Connector : MTP/MPO-12

Media : MMF

Transmitter Type : VCSEL

Receiver Type : PIN

TX Power : -3~3dBm

Receiver Sensitivity : <-6.5dBm

Receiver Overload : 5dBm

Power Consumption : ≤5W

Extinction Ratio : >3dB

Temperature : C-Temp & I-Temp

Protocols : IEEE 802.3bs、QSFP56 MSA、SFF-8665、SFF-8636

Warranty : 3 Years

Compatible Brand : Cisco,Arista,Juniper,Brocade,H3C,Dell,Extreme,HW,Intel,Netgear,IBM Mellanox,Mellanox,Avaya,Alcatel-Lucent,D-Link,Ubiquiti&Generic

Contact Now

Transceiver

Features

Hot-pluggable QSFP56 form factor
Built-in200G PAM4 DSP
Supports 212.5Gb/saggregate bit rates
Supports 103.125Gb/s aggregate bit rates if required
Low power dissipation <5W
RoHS-6 compliant (lead-free)
Commercial case temperature rangeof 0°C to 70°C
Single 3.3V power supply
Maximum link length of 70m onOM3 MMF and100m on OM4& OM5 MMF
Uncooled 4 channels 850nm VCSEL array
4 channels PIN photo detector array
200GAUI-4 electrical interface
Single MPO12 receptacle
CMIS V4.0 compliant
Built-in digital diagnostic functionality

Applications

IEEE 802.3cd 200GBASE-SR4 Ethernet (PAM4)
IEEE 802.3bm 100GBASE-SR4 Ethernet (NRZ)

Description

ZK-Q56-2H85MP-S1 200GE QSFP56 Optical Transceivermodules are designed for use in 200Gigabit Ethernet links over OM3/OM4/OM5 multimode fiber. Theyare compliant with the QSFP MSAand with IEEE 802.3cd200GBASE-SR4 specification. Digitaldiagnostics functions are available via the I2C interface as specified by CMIS V4.0. The transceiver is RoHS 2.0 compliantand lead-free perDirective 2011/65/EU.

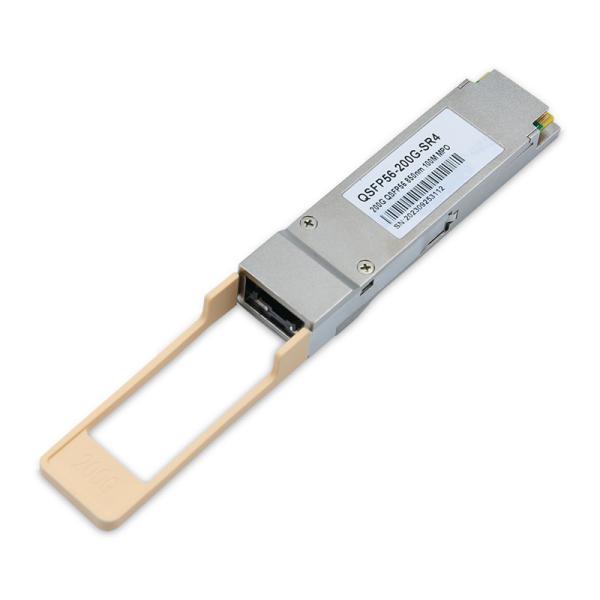

200GBASE MTP/MPO 100m SR4 QSFP56 over OM4 Transceiver MMF Images
