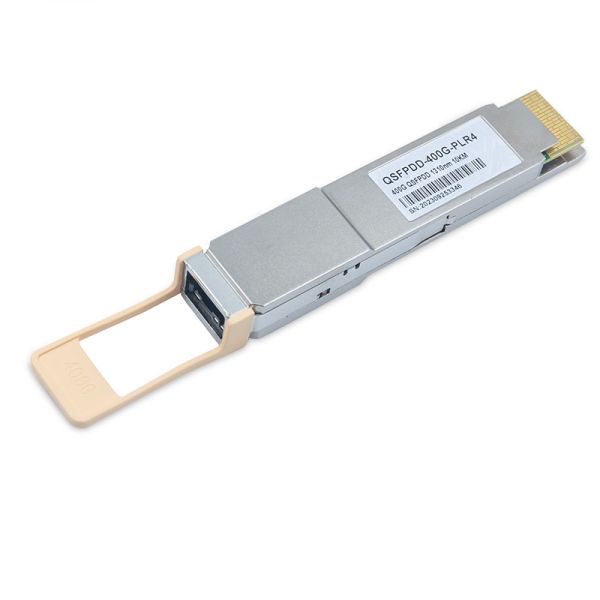

PLR4 400G QSFP DD Transceiver MTP MPO-12 10KM 1310nm

  • 1
  • 2
  • 3

Model Number : ZK-QDD-4H13MP-10

Certification : CE, FCC, ROHS, ISO9001, ISO14000, MSDS, REACH, CP65, TUV, UL

Place of Origin : China

MOQ : 1pcs

Price : negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 50,000pcs/month

Delivery Time : 1-5 working days

Packaging Details : Single Package，10pcs per Tray，100-500pcs per Carton

Form Factor : QSFP-DD

Max Data Rate : 400Gbps

Wavelength : 1310nm

Distance : 10km

Connector : MTP/MPO- 12 (APC)

Media : SMF

Transmitter Type : EML

Receiver Type : PIN

TX Power : -1.9~4.8dBm

Receiver Sensitivity : < -8.2dBm

Receiver Overload : 5.8dBm

Extinction Ratio : >3.5dB

Power Consumption : ≤10W

Protocols : IEEE 802.3cu, QSFP-DD MSA, CMIS 4.0

Temperature : C-Temp & I-Temp

Warranty : 3 Years

Compatible Brand : Cisco,Arista,Juniper,Brocade,H3C,Dell,Extreme,HW,Intel,Netgear,IBM Mellanox,Mellanox,Avaya,Alcatel-Lucent,D-Link,Ubiquiti&Generic

Contact Now

PLR4 400G QSFP DD Transceiver MTP MPO-12 10KM 1310nm

Features

  • Maximum Power Consumption 10W
  • Case Operating Temperature 0℃ to 70℃
  • Two Wire Serial Interface with Digital Diagnostic Monitoring • Class 1 Laser Features QSFPDD-PLR4-400G
  • Compliant with QSFP-DD MSA HW Rev 5.0 Type 2 Housing with MPO-12 Connector
  • Compliant with QSFP-DD CMIS Rev 4.0
  • Compliant with EU Directive 2011/65/EU (RoHS Compliant)
  • Compliant with IEEE802.3bs Standard: 400GAUI-8 Electrical Interface
  • Compliant with IEEE802.3cu Standard: 4x100GBASE-LR1 Optical Interfac

Applications

  • Data Center Interconnect
  • 400G Ethernet
  • Infiniband Interconnect
  • Enterprise Networking

Description

This product is a 400Gb/s Quad Small Form Factor Pluggable-double density (QSFP-DD) optical module designed for 10km optical communication applications. The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP-DD Multi- Source Agreement (MSA).
