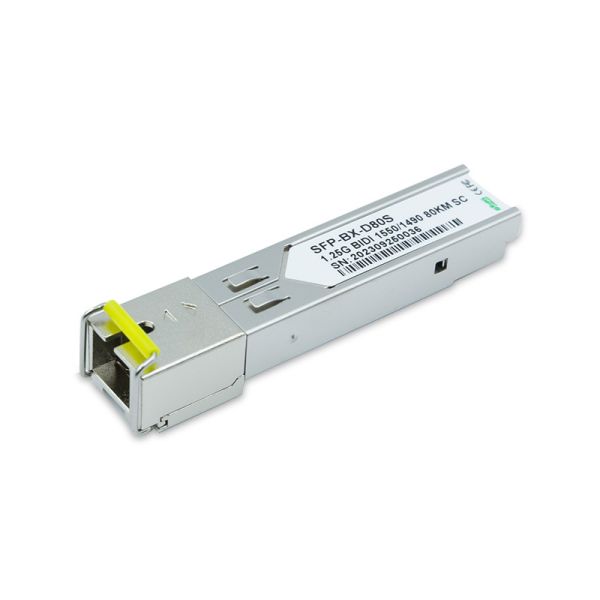

Cisco Compatible 1G Transceiver 1.25GBASE BiDi SFP SC Connector SMF 80km Reach 1490nm 1550nm TX RX SFP

Product Categories
Shenzhen Zkosemi Semiconductor Technology Co., LTD.
Contact Now

Cisco Compatible 1G Transceiver 1.25GBASE BiDi SFP SC Connector SMF 80km Reach 1490nm 1550nm TX RX SFP

  • 1
  • 2
  • 3

Model Number : ZK-SFP-1G54S-80

Certification : CE, FCC, ROHS, ISO9001, ISO14000, MSDS, REACH, CP65, TUV, UL

Place of Origin : China

MOQ : 1pcs

Price : negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 50,000pcs/month

Delivery Time : 1-5 working days

Packaging Details : Single Package，10pcs per Tray，100-500pcs per Carton

Form Factor : SFP

Max Data Rate : 1.25Gbps

Wavelength : 1550nm TX/1490nm RX

Distance : 80km

Connector : SC

Media : SMF

Transmitter Type : DFB

Receiver Type : PIN

TX Power : 0~5dBm

Receiver Sensitivity : < -26dBm

Receiver Overload : -3dBm

Extinction Ratio : >9dB

Power Consumption : ≤1W

Protocols : Fast Ethernet, Gigabit Fibre Channel, MSA

Temperature : C-Temp & I-Temp

Warranty : 3 Years

Compatible Brand : Cisco,Arista,Juniper,Brocade,H3C,Dell,Extreme,HW,Intel,Netgear,IBM Mellanox,Mellanox,Avaya,Alcatel-Lucent,D-Link,Ubiquiti&Generic

Contact Now

Cisco Compatible 1.25GBASE BiDi SFP SC connector SMF 80km Reach 1550nm TX / 1490nm RX Transceivers

Features

  • Up to 1.25Gbps bi-directional data links
  • 1490nm DFB laser and PIN photo detector for ZK-SFP-1G54S-80
  • 1550nm DFB laser and PIN photo detector for ZK-SFP-1G54S-80
  • Up to 80km for SMF transmission
  • Compliant with SFP MSA and SFF-8472 with single SC receptacle
  • Digital Diagnostic Monitoring: Internal Calibration or External Calibration
  • Hot-pluggable SFP footprint
  • Metal enclosure, for lower EMI
  • Compatible with RoHS
  • +3.3V single power supply
  • Operating case temperature:Standard : 0 to +70°C, Industrial : -40 to +85°C

Application

  • Gigabit Ethernet
  • Switched Backplane Applications
  • Switch to Switch interface
  • Switched backplane applications
  • Router/Server interface
  • Other optical transmission systems

Description

  • ZK-SFP-1G54S-80 Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA), The transceiver consists of five sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, the 1490nm DFB laser (the 1550nm DFB laser) and the PIN photo-detector. The module data link up to 80KM in 9/125um single mode fiber.

  • The optical output can be disabled by a TTL logic high-level input of Tx Disable, and the system also can disable the module via I2C. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner. The system can also get the LOS (or Link)/Disable/Fault information via I2C register access.
