12Gbps Video SFP Optical Receiver Module

Certification : CE, FCC, ROHS, ISO9001, ISO14000, MSDS, REACH, CP65, TUV, UL

Place of Origin : China

MOQ : 1 pcs

Price : negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 50,000pcs/month

Delivery Time : 1-5 work days

Packaging Details : Single Package,10pcs per Tray,100-500pcs per Carton

Form Factor : SFP+

Max Data Rate : 12Gb/s

Wavelength : 1610nm

Distance : 20km

Connector : LC

Media : SMF

Receiver Type : PIN

Receiver Sensitivity : < -14.5dBm

Receiver Overload : 0.5dBm

Power Consumption : ≤1W

Temperature : C-Temp

Protocols : SFP MSA,SFF-8472

Warranty : 3 Years

Compatible Brand : Cisco,Arista,Juniper,Brocade,H3C,Dell,Extreme,HW,Intel,Netgear,IBM Mellanox,Mellanox,Avaya,Alcatel-Lucent,D-Link,Ubiquiti&Generic

Contact Now

Features

Up to 12Gb/s data links
HD-SDI SFP Receiver available
SD-SDI SFP Receiver available
12G-SDI SFP Receiver available
Support Video pathological pattern for SD SDI,HD-SDI,12G-SDI.
Distance up to 20 km
Hot-pluggable SFP+ footprint
RoHS- 10 compliant and lead-free
Single +3.3V power supply
IEC-60825 Compliant
Meet ESD requirements, resist 8KV direct contact voltage
Operating case temperature: 0 to +70°C

Application

Video system
HDTV/SDTV Service Interfaces

Description

The SFP video receivers are high performance, cost effective modules supporting 12Gbps and 20km transmission distance with SMF.

The receiver consists of two sections: a PIN photodiode integrated with a trans-impedance preamplifier (TIA). All modules satisfy class I laser safety requirements.

The receivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

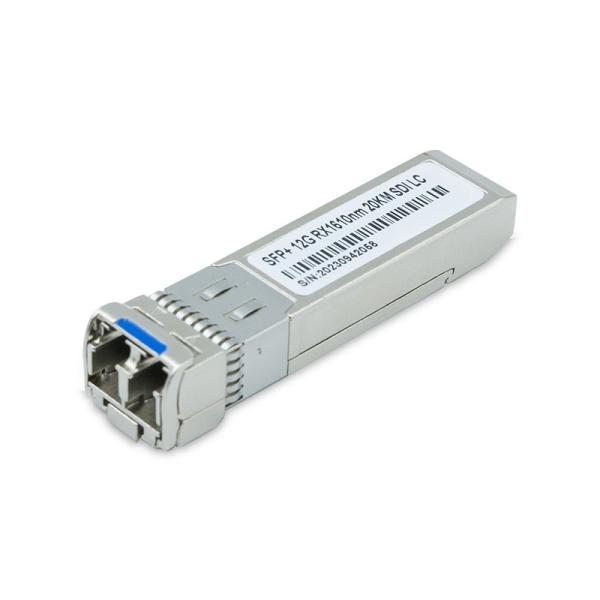

12Gbps Video SFP Optical Receiver Module Images
